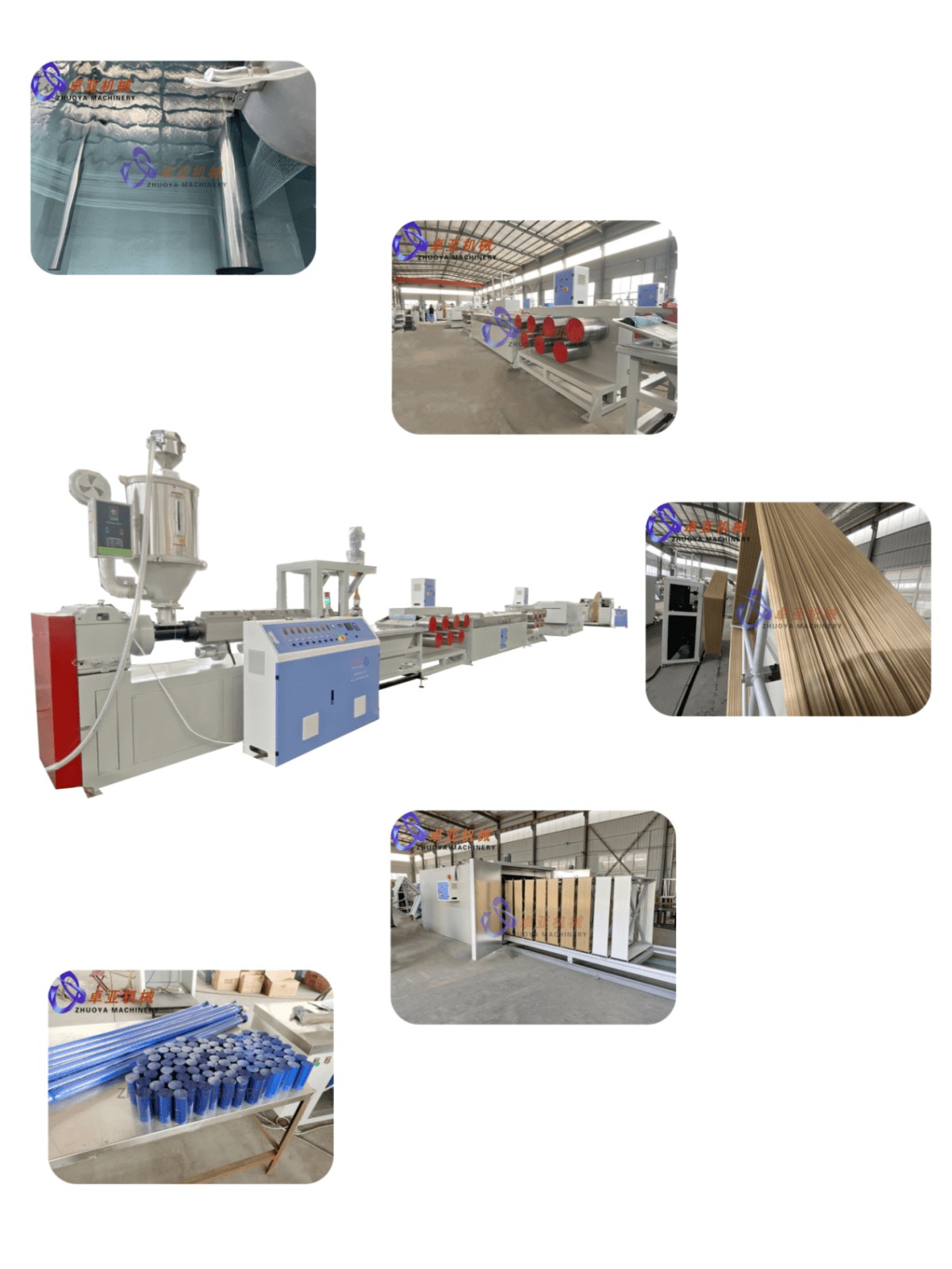

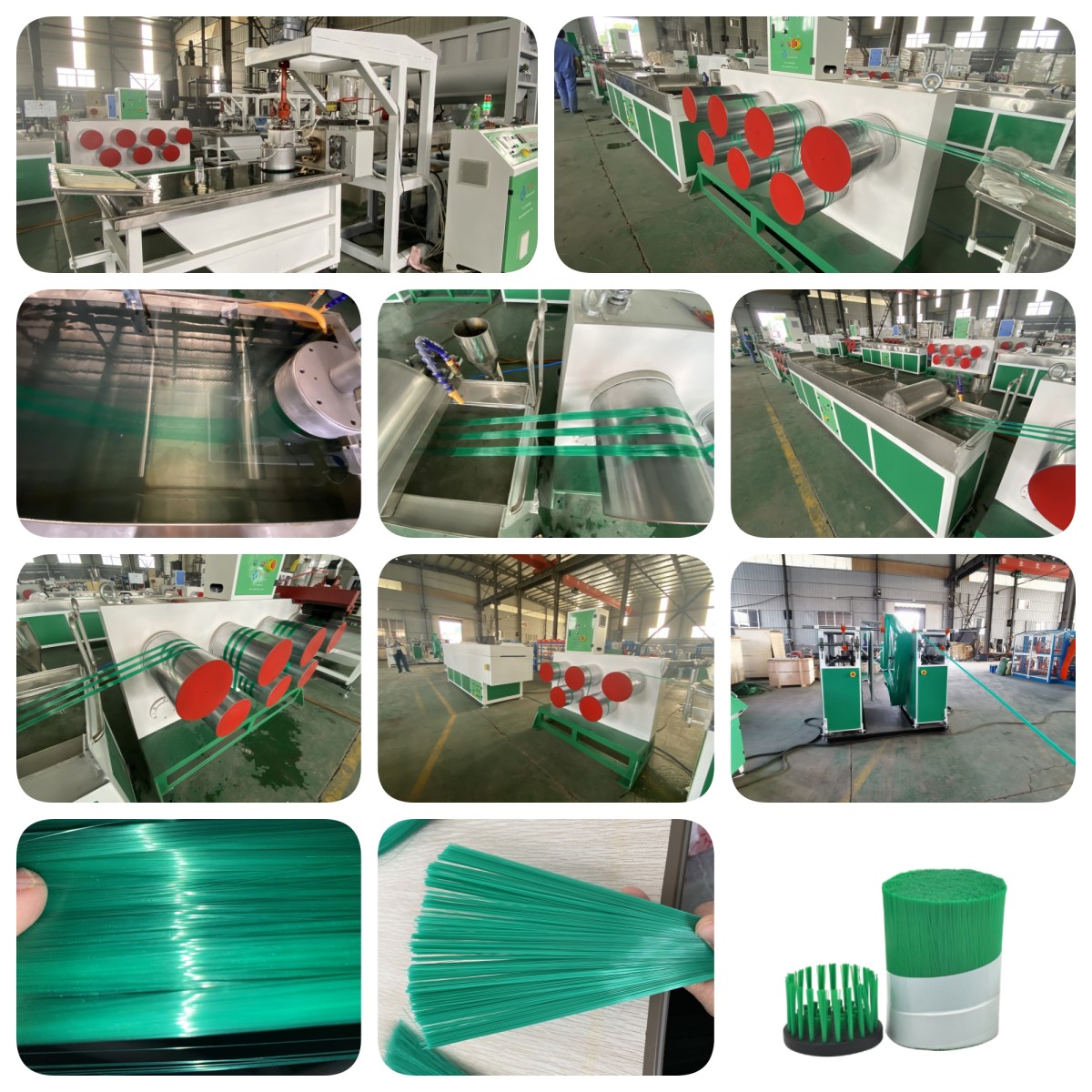

PET PP broom filament extruder machine
PET PP broom filament extruder machine can produce high-quality broom filament with shining color, excellent flexilibility and resilience, very good durability and resistance to oxidation from both PET and PP.
The raw material can be 100% recycled PET water bottle flakes or PP resins, which is green and environmental friendly.
+86 15063002011
WhatsApp: +86 15063002011
info@zyamachine.com
Send E-mail
Machine Features:

PET PP broom filament extruder machine can produce high-quality broom filament with shining color, excellent flexilibility and resilience, very good durability and resistance to oxidation from both PET and PP.

The raw material can be 100% recycled PET water bottle flakes or PP resins, which is green and environmentally friendly.

The filament could be straight, crimped, solid, hollow, flaggable, non-flaggable, round, trangle, zigzag or other shapes with our mature technology support.



Machine Models:


ModelZYLS-75ZYLS-80ZYLS-90
Screw L/D30:130:130:1
Gearbox model200225225
Main motor22kw30kw37kw
Capacity(kg/h)80-100kg100-120kg150-170kg
Mould Dia.200200200
Filament Dia.0.1mm-3mm0.1mm-3mm0.1mm-3mm

Equipment Configuration:



No.Name Qty.
1SJ75/SJ80/SJ90 single screw extruder1 set
2Die head+mould1 set
3Water-cooling tank1 set
4First tensile machine1 set
5Pre-heating machine1 set
6Second tensile machine1set
7Third tensile machine1 set
8Oil bath tank 1 set
9Pneumatic tensioner1 set
10Winder1 set
Electrical
 1) Main motor frequency controller: ABB 2) Temperature controller: OMRON 3) AC contactor: SIEMENS 4) Thermal overload relay: SIEMENS




Application:

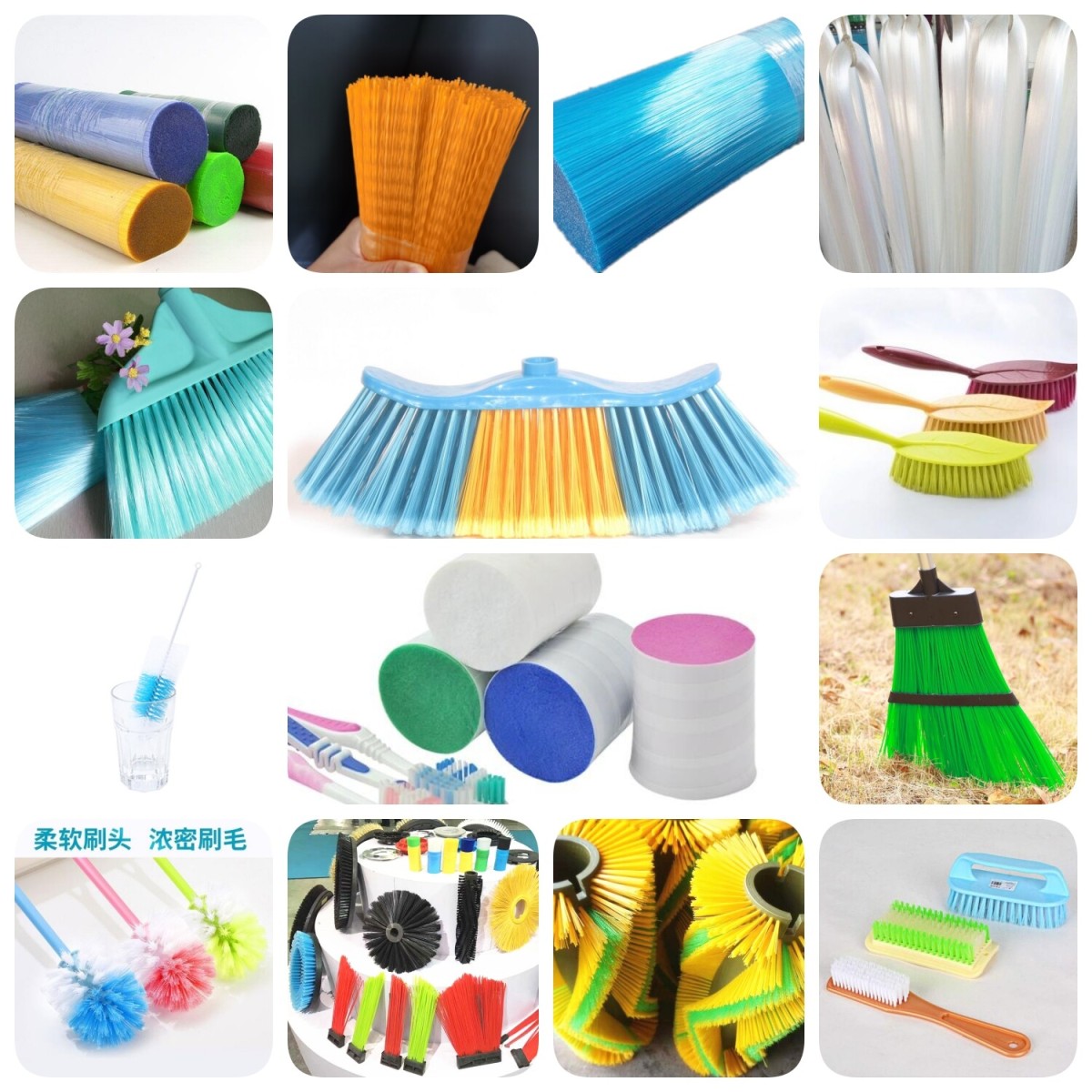

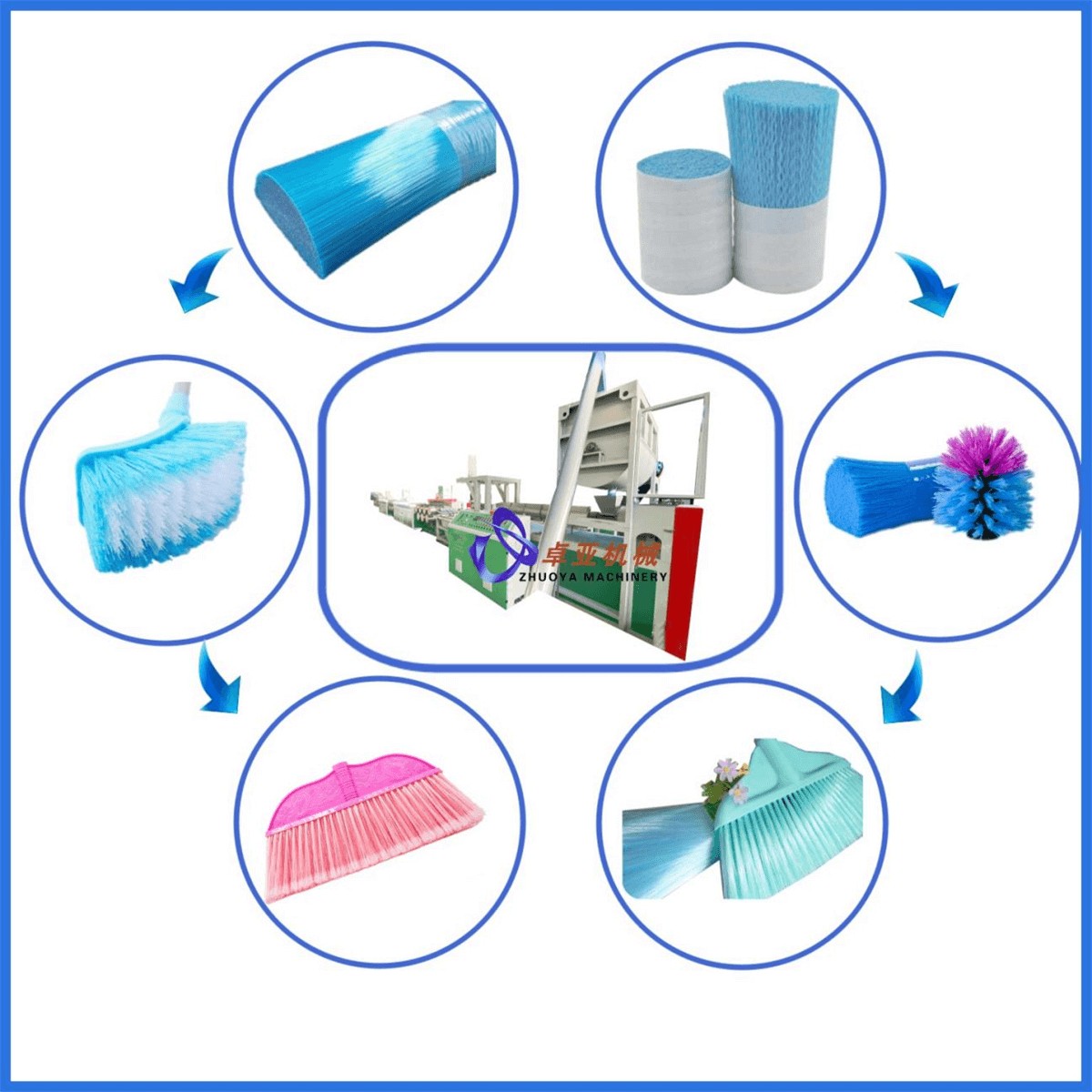

House cleaning broom filament, garden cleaning broom, toilet brush, shoes brush, Kitchen brush filament, road cleaning broom, cleaning brush filament, Christmas tree needle filament etc.



Manufacturer Advantages:


1.20-years experience for plastic filament extruder machine study and improvement

2.80% domestic market share and countless feedback from customers

3.Zero scrap

4.Low cost material and high market competitiveness

5.Comprehensive service system to assure production line running smoothly

6.Mature sales team and oversea engineer service

7.24 hours online service to solve all your questions
